Main features

Suitable for 4-12 wheels, 4-wheeled vehicle + trailer or van (this set includes 6 sensors)
Sensor pressure range: 0-7.9 Bar / 0-115 PSI
Can be used with low pressure tires from 0.8 bar.
Adjustable alarm threshold for tire pressure and temperature
Multi-color solar powered display
Adjustable display duration for each axis
Backup power from Micro USB input
Max. 14 tire readings (2 steering axle, 12 remaining 3 axle trees)
The pressure threshold value of each axis can be adjusted separately
Automatic display brightness
Intelligent power saving mode
Pre-programmed sensors, no pairing required
Sensors with low current consumption, no data is transmitted when idle.

Technical data:

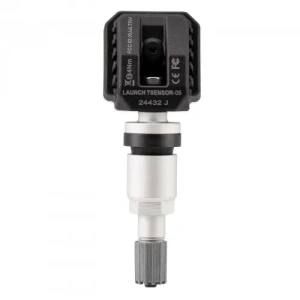

Internal sensor:
Operating frequency: 433.92 MHz ± 0.05MHz
Operating voltage: 2.0-3.3V
Current consumption: ≤12mA
Static current consumption: ≤0.5 euros μA
Operating temperature: -20 °C +80 °C
Storage temperature: -40 °C ~ +80 °C
Battery specification: Military Spec Maxell
Battery life: 5 years

Alarm Values

Setting ranges:
Adjustable overpressure value: 2.6-7.9 Bar
Adjustable negative pressure value: 0.9-3.9 Bar
Adjustable high temperature value: 70-90°C

Default values:
Overpressure value: 3.3 Bar
Negative pressure value: 1.7 Bar
High temperature value: 80°C

Note: If the set pressure changes ±25%, a tire pressure alarm will appear.

Pairing sensors and screen:

1. Press the SET button 5 times, you will hear a beep - this indicates that you are in pairing mode

2. Now the indicator of the first left tire flashes,

3. According to which tire indicator is flashing, deflate some of that tire

4. The tire pressure reading must change within 4-8 seconds

5. Press the SET button to confirm

6. Then use the arrow button to go to the next tire and repeat the process

7. When all 4 tires are done as above, hold the SET button for 4 seconds to save and exit the pairing mode
